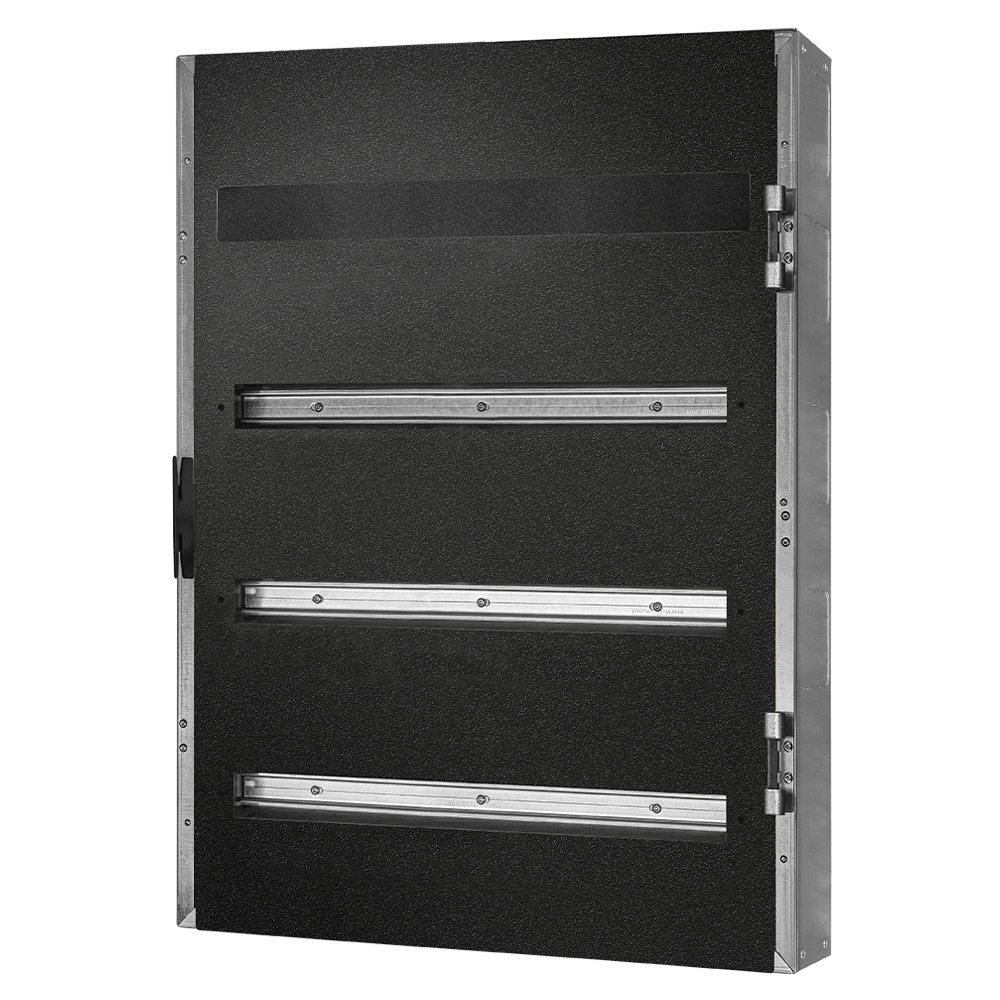

The Future Automation RCP (Rako Control Panel) range are DIN rail enclosures that have been specifically designed to pair with the Rako Lighting Control System.
The RCP has a vented latching door to meet Amendment 3 Regulations
The 18th edition (2018) introduced a number of changes, so we have made changes that will affect all Future Automation Electrical Enclosures
(More info...)
This unique control panel is available in 3 different sizes, it incorporates the internationally recognised DIN rail system, along with a range of neatly designed install assisting benefits such as; full integral cable management, dedicated earthing and neutral bars, a fully removable front cover making installation of your Rako lighting control system easy and tidy.
The lid of the RCP has full width cut outs, to allow for a flexible installation. This means that to comply with regulations, a compatible module trim plate must be used to complete each rail:
- 1 x Rako module - LXN-MTP157
- 2 x Rako modules - LXN-MTP319
- Empty rail (future expansion) - LXN-BP
HAND CRAFTED IN HOUSE
TECHNICAL SPECIFICATION
| PRODUCT CODE | RCP3 | RCP4 | RCP5 |
|---|---|---|---|
| DEPTH FROM WALL | 141.5 MM (5.57") | 141.5 MM (5.57") | 141.5 MM (5.57") |
| DIN RAILS | 3 | 4 | 5 |
| FINISH (CUSTOM AVAILABLE) |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
| PANEL DIMENSIONS (HXWXD) |
750 X 690 X 141.5MM (27.55 X 27.16 X 5.57") |
900 X 690 X 141.5MM (35.43 X 27.16 X 5.57") |
1125 X 690 X 141.5MM (44.29 X 27.16 X 5.57") |
| WALL MOUNT TYPE | KEYHOLE SLOTS | KEYHOLE SLOTS | KEYHOLE SLOTS |
| DOWNLOADS / SUPPORT | |||
| TECHNICAL SHEET |
 RCP3 TECH
|
RCP4 TECH
|
RCP5 TECH
|
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| DEPTH FROM WALL | RCP3 | 141.5 MM (5.57") |
| RCP4 | 141.5 MM (5.57") | |
| RCP5 | 141.5 MM (5.57") | |
| DIN RAILS | RCP3 | 3 |
| RCP4 | 4 | |
| RCP5 | 5 | |
| FINISH (CUSTOM AVAILABLE) | RCP3 |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
| RCP4 |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
|
| RCP5 |
LID - TEXTURED BLACK PAINT BOX - ZINTEC COATED STEEL |
|
| PANEL DIMENSIONS (HXWXD) | RCP3 |
750 X 690 X 141.5MM (27.55 X 27.16 X 5.57") |
| RCP4 |
900 X 690 X 141.5MM (35.43 X 27.16 X 5.57") |
|
| RCP5 |
1125 X 690 X 141.5MM (44.29 X 27.16 X 5.57") |
|
| WALL MOUNT TYPE | RCP3 | KEYHOLE SLOTS |
| RCP4 | KEYHOLE SLOTS | |
| RCP5 | KEYHOLE SLOTS | |
| DOWNLOADS / SUPPORT | ||
| TECHNICAL SHEET |
RCP3 Tech
RCP4 Tech
RCP5 Tech
|
|
