TV HINGE UP

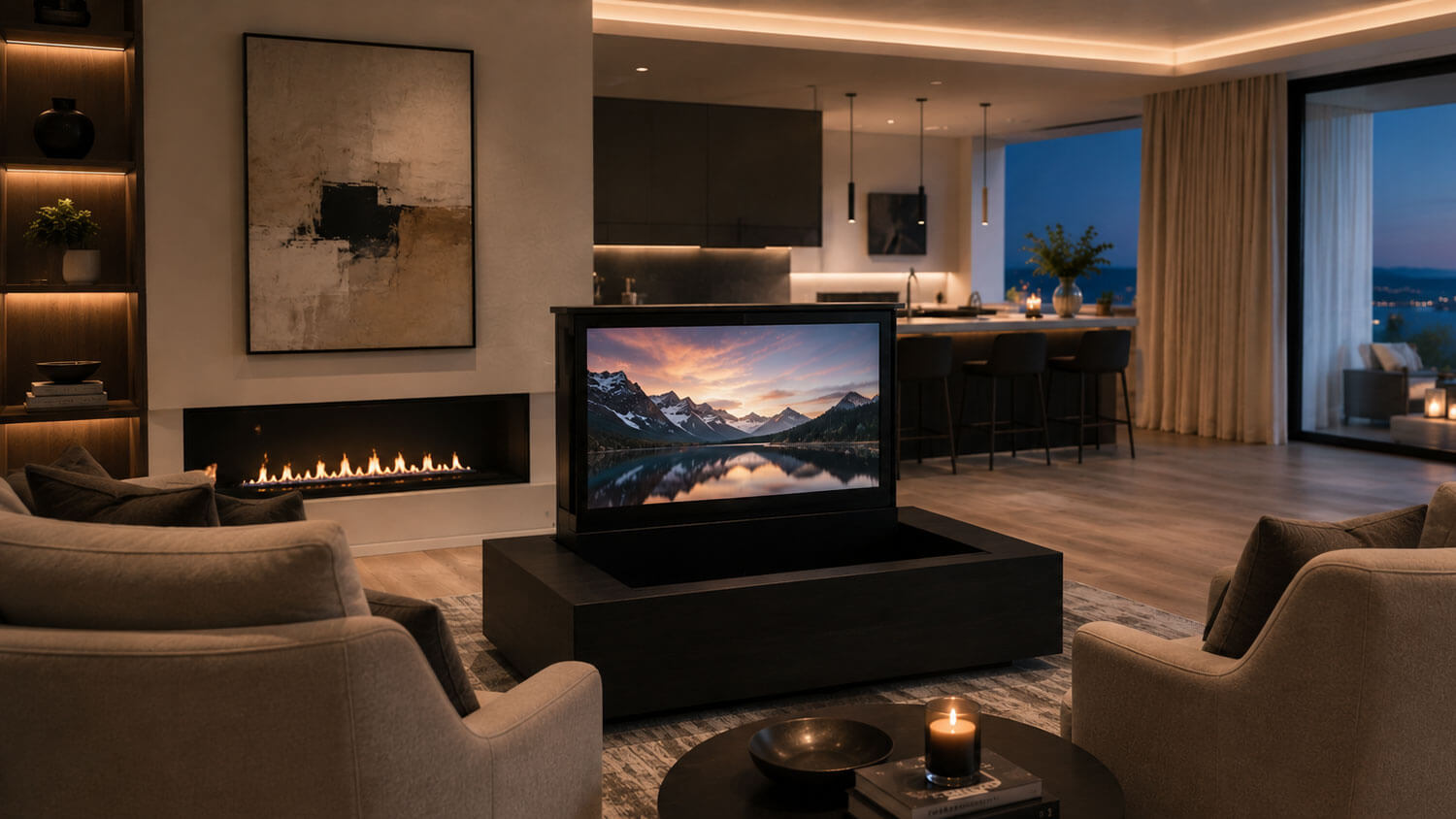

The Hinge Up mechanism allows a flat screen television to be concealed horizontally within a cabinet and hinged up through 90 degrees for viewing.

Available in 3 standard sizes, or available individually sized per order, all Hinge Up mechanisms are built to perfectly suit the application.

HOW TO PURCHASE

DEALER LOGIN

TECHNICAL SPECIFICATION

PRODUCT CODE	HU4	HU5	HU6
CONTROL OPTIONS	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
MAX ROTATION	90°	90°	90°
MAX SCREEN SIZE (H X W X D)	680 X 1130 X 65MM (26.8 X 44.5 X 2.6")	800 X 1330 X 65MM (31.5 X 52.4 X 2.6")	920 X 1530 X 65MM (36.2 X 60.2 X 2.6")
MAX WEIGHT	50KG (110LBS) INCLUDING CABINET WEIGHT	50KG (110LBS) INCLUDING CABINET WEIGHT	50KG (110LBS) INCLUDING CABINET WEIGHT
MOVEMENT TYPE	MOTORISED	MOTORISED	MOTORISED
SHIPPING INFORMATION
SHIPPING DIMENSIONS	VARIABLE	VARIABLE	VARIABLE
SHIPPING WEIGHT	VARIABLE	VARIABLE	VARIABLE
DOWNLOADS / SUPPORT
TECHNICAL SHEET	HU4 TECH	HU5 TECH	HU6 TECH
CAD	HU4 CAD	HU5 CAD	HU6 CAD

TECHNICAL SPECIFICATION
CONTROL OPTIONS	HU4	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
	HU5	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
	HU6	RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
MAX ROTATION	HU4	90°
	HU5	90°
	HU6	90°
MAX SCREEN SIZE (H X W X D)	HU4	680 X 1130 X 65MM (26.8 X 44.5 X 2.6")
	HU5	800 X 1330 X 65MM (31.5 X 52.4 X 2.6")
	HU6	920 X 1530 X 65MM (36.2 X 60.2 X 2.6")
MAX WEIGHT	HU4	50KG (110LBS) INCLUDING CABINET WEIGHT
	HU5	50KG (110LBS) INCLUDING CABINET WEIGHT
	HU6	50KG (110LBS) INCLUDING CABINET WEIGHT
MOVEMENT TYPE	HU4	MOTORISED
	HU5	MOTORISED
	HU6	MOTORISED
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS	HU4	VARIABLE
	HU5	VARIABLE
	HU6	VARIABLE
SHIPPING WEIGHT	HU4	VARIABLE
	HU5	VARIABLE
	HU6	VARIABLE
DOWNLOADS / SUPPORT
TECHNICAL SHEET	HU4 Tech HU5 Tech HU6 Tech
CAD	HU4 CAD HU5 CAD HU6 CAD
