DEB WIRING SERVICE TECH SPECS

DATA ENCLOSURE BOX

The Data Enclosure Box is designed to mount patch panels and network hub / routers in a dedicated box. A reversible locking vented door mean equipment is protected, but easily accessible for maintenance. Designed around industry standards to allow for sets of 1 or 2 19" 24 Way Patch Panels, and 19" Network Hubs / Routers (enclosure size dependent).

The DEB is available in 2 sizes as standard:

  • DEB24 - Includes 1 pair of Hang Brackets & 1 pair of Patch Brackets
  • DEB48 - Includes 2 pairs of Hang Brackets & 2 pair of Patch Brackets

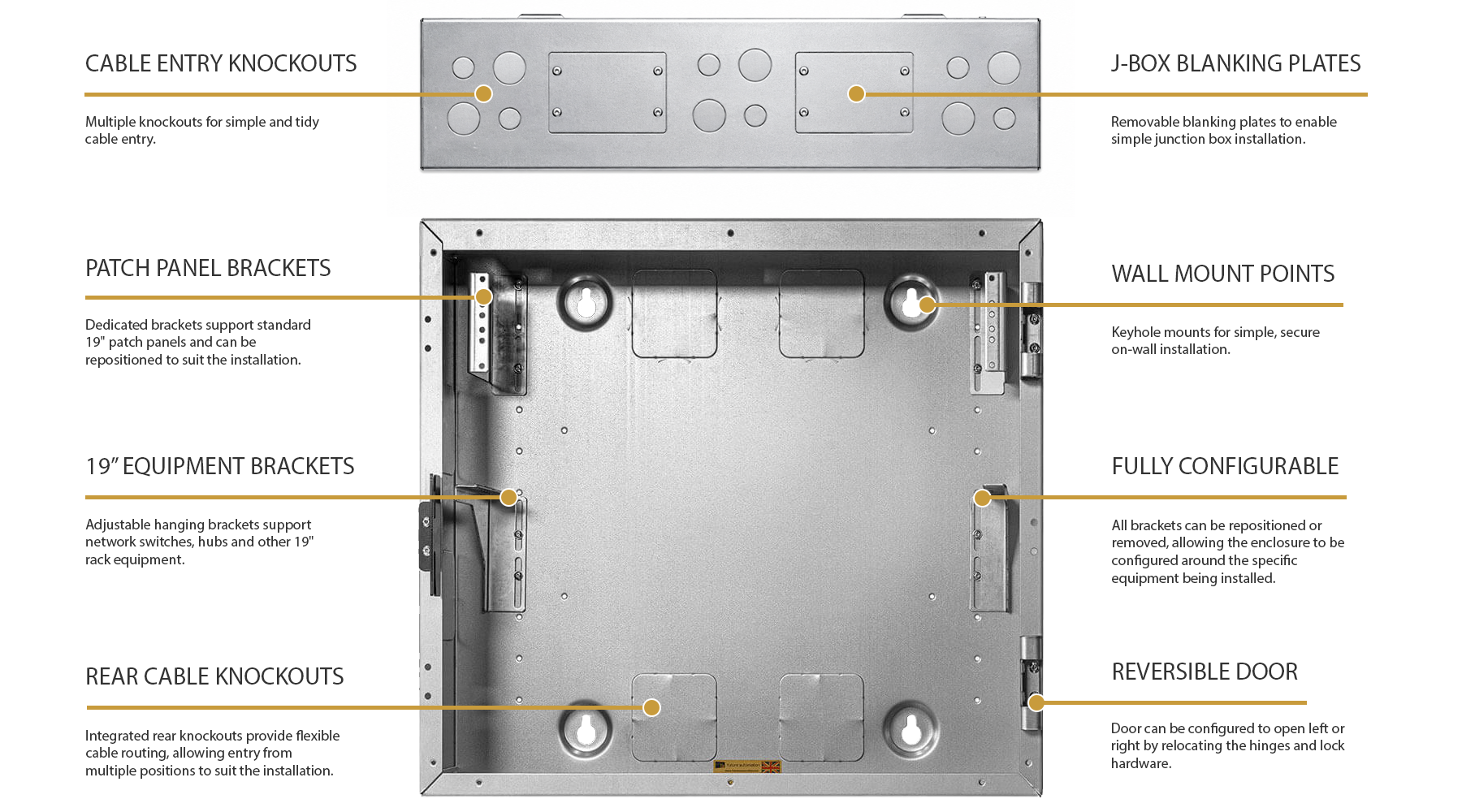

Designed to have a multi-configurable layout, the included hang and patch brackets allow for a flexible installation. (Extra brackets available separately).

The LCP has a vented, latching door to meet Amendment 3 Regulations.

The 18th edition (2018) introduced a number of updates, so we made changes that ensure all Future Automation Electrical Enclosures exceed these requirements
(more info...)

DEB ACCESSORIES

DEB-HANG-BRACKETS

Additional 19" rack hanging brackets designed to mount equipment (e.g. switch, hub) in a DEB enclosure - supplied in pairs
(Extra Available Separately)

DEB-PATCH-BRACKETS

Additional brackets specifically designed to mount a patch panel in a DEB enclosure - supplied in pairs
(Extra Available Separately)

DEB-DRK MORE INFO

The DEB Add-On DIN Rail Kit allows the mounting of DIN compatible modules alongside networking equipment inside a DEB enclosure
(Available Separately)

HAND CRAFTED IN HOUSE

Manufacturing Image 1
Manufacturing Image 2 Manufacturing Image 3
Manufacturing Image 4

TECHNICAL SPECIFICATION

PRODUCT CODE DEB24 DEB48
DEPTH FROM WALL 176.5MM (6.9") 176.5MM (6.9")
FINISH (CUSTOM AVAILABLE) LID - TEXTURED BLACK PAINT
BOX - ZINTEC COATED STEEL
LID - TEXTURED BLACK PAINT
BOX - ZINTEC COATED STEEL
NO. OF PATCH PANEL RACK UNIT SPACES 2 4
NO. OF SWITCH PANEL RACK UNIT SPACES 2 4
PANEL DIMENSIONS (H X W X D) 500 X 560 X 176.5MM (19.7 X 22.0 X 6.9") 950 X 560 X 176.5MM (37.4 X 22.0 X 6.9")
SHIPPING INFORMATION
SHIPPING DIMENSIONS 75 x 66 x 30cm (29.52 x 25.98 x 11.81") 104 x 71 x 30cm (40.94 x 27.95 x 11.81")
SHIPPING WEIGHT 10kg (22lbs) 21kg (46lbs)
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentDEB24 TECH
PDF DocumentDEB48 TECH
CAD CAD FileDEB24 CAD
CAD FileDEB48 CAD
TECHNICAL SPECIFICATION
DEPTH FROM WALL DEB24 176.5MM (6.9")
DEB48 176.5MM (6.9")
FINISH (CUSTOM AVAILABLE) DEB24 LID - TEXTURED BLACK PAINT
BOX - ZINTEC COATED STEEL
DEB48 LID - TEXTURED BLACK PAINT
BOX - ZINTEC COATED STEEL
NO. OF PATCH PANEL RACK UNIT SPACES DEB24 2
DEB48 4
NO. OF SWITCH PANEL RACK UNIT SPACES DEB24 2
DEB48 4
PANEL DIMENSIONS (H X W X D) DEB24 500 X 560 X 176.5MM (19.7 X 22.0 X 6.9")
DEB48 950 X 560 X 176.5MM (37.4 X 22.0 X 6.9")
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS DEB24 75 x 66 x 30cm (29.52 x 25.98 x 11.81")
DEB48 104 x 71 x 30cm (40.94 x 27.95 x 11.81")
SHIPPING WEIGHT DEB24 10kg (22lbs)
DEB48 21kg (46lbs)
DOWNLOADS / SUPPORT
TECHNICAL SHEET PDF DocumentDEB24 Tech
PDF DocumentDEB48 Tech
CAD CAD FileDEB24 CAD
CAD FileDEB48 CAD
